LIGHTBOX SIGN QUALITY GUIDE — WHAT MAKES ILLUMINATED PANELS LOOK DIFFERENT

Not all vinyl signs are the same. The film grade, ink system, and laminate you choose determines whether your sign looks sharp for 3 years or 10 — and whether it peels, fades, or stays perfect through Australian sun and rain.

Premium vinyl shopfront sign installed on glass vibrant clean edges Perth - Neon Brothers
ESSENTIAL
ESSENTIAL

ESSENTIAL — BUDGET LIGHTBOX SIGNS

Who it is for:

Entry-level businesses, pop-up retail, temporary promotions, short-term campaigns.

The sign uses standard cast vinyl with solvent ink and no laminate. It goes on clean, looks great on day one, and does its job. Colours are CMYK matched. The outdoor lifespan is typically 3 to 4 years before fade starts, depending on sun, heat, and coastal humidity.

Spec at a glance
Steel frame · Standard opal acrylic · Generic SMD · Generic CE driver · IP54

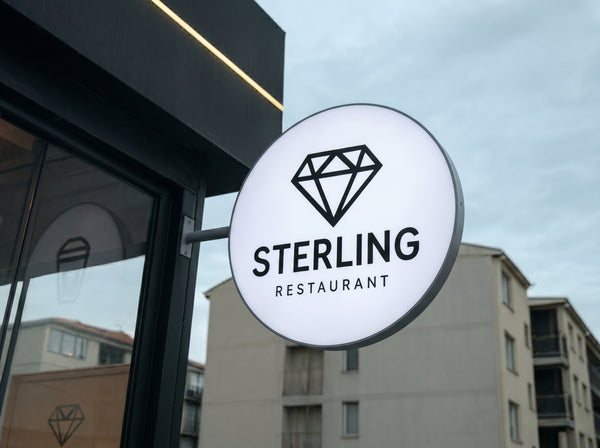

Essential tier vinyl sign example - Neon Brothers
PREMIUM
PREMIUM

PREMIUM — PROFESSIONAL ILLUMINATED SIGNAGE

Who it is for:

Established cafes, retail stores, offices, and businesses that repaint or refit every 5-7 years.

Premium uses long-term cast vinyl with eco-solvent ink and a gloss over-laminate. The laminate adds UV protection and keeps the surface wipe-clean. Colours are Pantone-referenced so they match your brand guidelines. Wet application means cleaner install with no bubbles.

Spec at a glance
SS304 · Premium cast opal acrylic · Tier-1 LED 120 LED/m · Named-brand CE driver · IP65

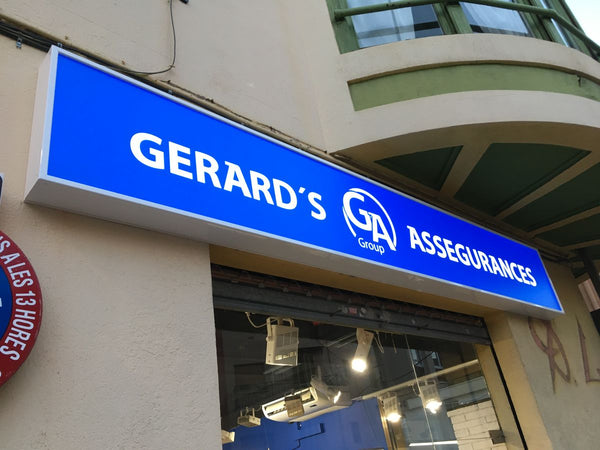

Premium tier vinyl sign example - Neon Brothers
ELITE
ELITE

ELITE — ARCHITECTURAL-GRADE LIGHTBOX SIGNS

Who it is for:

Flagship stores, franchise rollouts, high-end retail, anywhere brand consistency is non-negotiable.

Elite uses premium cast vinyl with UV-cured ink, the same technology used in automotive and architectural graphics. A UV-blocking matte laminate sits on top, cutting UV degradation dramatically. Colours are spectrophotometer-verified to exact Pantone values.

Spec at a glance
SS304 1.5mm reinforced · 8mm premium acrylic · Samsung 5-step MacAdam · Meanwell · IP67 IEC cert
Elite tier vinyl sign example - Neon Brothers
Side by Side
Side by Side

SIDE-BY-SIDE COMPARISON

Spec Essential Premium ★ Elite
Frame Steel painted SS304 1mm SS304 1.5mm reinforced
Acrylic Face Standard opal Premium cast opal (Plexiglas) 8mm premium cast — zero hotspot
LED Chip Generic SMD Tier-1 (Samsung/Epistar) 120 LED/m Samsung equiv — 5-step MacAdam
Driver Generic CE Named-brand CE (Inventronics) Meanwell or equiv — serialised
IP Rating IP54 self-declared IP65 CE certified IP67 IEC 60529 cert
Warranty 1 year 2-year NBCare™ 2-year NBCare™
Three vinyl signs comparison showing quality differences over time - Neon Brothers
FAQ

LIGHTBOX SIGNS — FREQUENTLY ASKED QUESTIONS

What causes hotspots?+

Cheap LEDs with wide spacing + thin acrylic. Premium/Elite use 120 LED/m + thicker cast acrylic for even diffusion.

IP54 vs IP65 vs IP67?+

IP54: self-declared splash. IP65: CE tested water jets. IP67: IEC 60529 tested submersion. Outdoor AU = IP65 minimum.

What is 5-step MacAdam binning?+

Architectural colour consistency standard. Every LED falls within tight tolerance — no warm/cool patches. Generic LEDs have no binning.

What is a Meanwell driver?+

World's most trusted LED driver brand. Consistent power, no overheating, serialised traceability. Generic drivers are the #1 failure point.

What is Duratrans backlit film?+

Photographic-quality translucent film for backlit signs. Colour accuracy far exceeds standard UV-print. Available on Elite tier.

Can lightboxes go outdoors in Australia?+

Essential (IP54 steel): indoor/sheltered only. Premium (IP65 SS304): standard outdoor. Elite (IP67 SS304 reinforced): exposed/coastal.

Do you ship signs Australia-wide?+

Yes. All signs are custom made and shipped tracked to any address in Australia — Perth, Sydney, Melbourne, Brisbane, Adelaide, and regional areas. Signs are packed flat with protective backing to prevent damage during transit.

How long do lightbox signs last?+

Frame: 10–20+ yrs. Generic LEDs: 3–5 yrs. Tier-1 LEDs: 5–8 yrs. Samsung + Meanwell: 8–12+ yrs. Driver failure is the usual cause of lightbox death.
